Stitch Width vs. Length: The Complete Guide to Machine Settings
You sit down at your sewing machine, ready to start a new project. You thread the needle, place your fabric under the presser foot, and then you pause. There are two dials (or buttons) staring back at you: Stitch Width and Stitch Length.
Leaving these on the “default” settings works for 80% of projects, but mastering them is what separates a “homemade” look from a professional finish. Understanding the X and Y axis of your needle allows you to sew stretch knits without popping seams, create beautiful satin stitches, and baste fabrics in seconds.
Stitch Length controls how much fabric the feed dogs pull through after each stitch (the Forward/Backward motion). Longer length = faster sewing, weaker seams.
Stitch Width controls the side-to-side movement of the needle (the Left/Right motion). This creates zig-zags and decorative patterns. A straight stitch has a width of 0.
1. Stitch Length: The “Feed” Setting
Stitch length is measured in millimeters (mm) on modern machines, or Stitches Per Inch (SPI) on vintage models. It determines the physical distance the needle travels forward.
Think of stitch length as the Resolution of your seam. High resolution (short stitches) is strong and tight. Low resolution (long stitches) is loose and temporary.
Short Length (1mm)
Tight, difficult to rip. Used for curves and reinforcement.
Standard Length (2.5mm)
The universal setting for construction seams.
Long Length (4-5mm)
Basting/Gathering. Easy to remove.
When to Adjust Stitch Length
| Setting (mm) | Best Use Case | Fabric Type |
|---|---|---|
| 0.5 – 1.0 | Reinforcing, Buttonholes, Satin Stitch | Any (High Stress Areas) |
| 2.0 – 2.5 | Standard Seams, Piecing | Cotton, Linen, Poly |
| 3.0 – 3.5 | Topstitching, Heavy Fabrics | Denim, Canvas, Leather |
| 4.0 – 5.0 | Basting, Gathering, Ruffling | Muslin, Tulle |
Never use a short stitch length on leather or vinyl. The needle creates permanent holes. If the stitches are too close together, you are essentially creating a “perforated tear line” (like a stamp), and the leather will rip right along the seam.
2. Stitch Width: The “Swing” Setting
Stitch width controls the lateral movement of the needle bar. If you are sewing a straight stitch, your width should be set to 0. As you increase the number (usually 0mm to 7mm), the needle swings further to the left and right.
The Straight Stitch Trap
On computerized machines, changing the “Width” while on a straight stitch setting moves the Needle Position.
- Center Needle Position: The standard for most sewing.
- Left/Right Needle Position: Used to get closer to zippers or piping without changing the foot.
The Zig-Zag and Decorative Stitches
Width is crucial for the Zig-Zag stitch.
- Narrow Width (0.5mm – 2mm): Creates a subtle stretch stitch for knits.
- Wide Width (4mm – 7mm): Used for overcasting edges (finishing seams) or decorative applique.

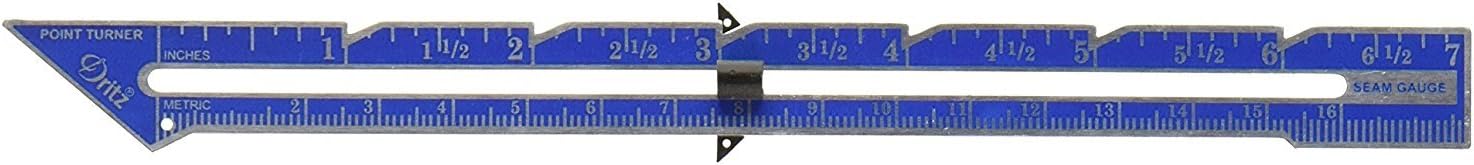

Dritz Sewing Gauge with Sliding Marker
While your machine has settings, verifying the actual stitch length on the fabric is key. Use this gauge to measure your Stitches Per Inch (SPI) to ensure your machine is calibrated correctly.
Check Price on Amazon3. The Relationship: How They Work Together
The magic happens when you manipulate both settings simultaneously. This is how you create the Satin Stitch.
By setting the Width to Max (5-7mm) and the Length to Min (0.2-0.5mm), the machine swings wide but barely moves forward. The threads stack right next to each other, creating a solid bar of color. This is used for buttonholes and applique edges.
Common Troubleshooting Issues
1. Fabric Bunching (Tunneling):
If your Zig-Zag is too wide and the fabric is too thin, the fabric will tunnel under the stitch.
Fix: Reduce the Width or use a stabilizer.
2. Thread Nesting:
If the stitch length is too short (near 0), the fabric won’t move, and the thread will pile up into a bird’s nest.
Fix: Increase the Length to at least 0.5mm.
4. Adjusting for Fabric Types
Different fabrics behave differently under the needle. You must test your settings on a scrap piece of the exact fabric you plan to use.
For Quilting
Quilters typically use a slightly shorter stitch length (2.0mm) for piecing to prevent the batting from poking through the seams.
For Knits (Stretchy Fabrics)
If you pull a seam sewn with a straight stitch on a t-shirt, it will pop. You need to introduce Width. A “Lightning Bolt” stitch (Narrow Width, Standard Length) allows the thread to zigzag slightly, giving the seam elasticity so it stretches with the fabric.
Schmetz Universal Machine Needles (Assorted)
Changing your stitch settings won’t help if your needle is dull or the wrong type. If you are changing widths frequently, ensure you aren’t using a straight-stitch plate, or you will shatter these needles instantly.
Check Price on AmazonConclusion
Stitch Width and Length are the X and Y coordinates of your creativity. Don’t be afraid to turn those dials. Test a 4mm length for a rustic topstitch on denim, or a 1mm width for a subtle stretch seam on jersey.
Once you master these two variables, you master the machine. For more setup tips, check out our guide on Sewing Machine Setup for Beginners.
